Standard IR (Ingersoll Rand) 380 shank for general-purpose 8-inch open hole drilling across mining, quarry, or water well programs.
Download ↓SD 8-inch shank, common on large production rigs configured for the SD series.
Download ↓QL (Atlas Copco) 80 shank, delivering the same high-torque A800 platform for European or Australian-sourced rigs.
Download ↓Simplified, high-reliability air distribution design that eliminates the blow tube entirely, reducing internal wear points.
Download ↓

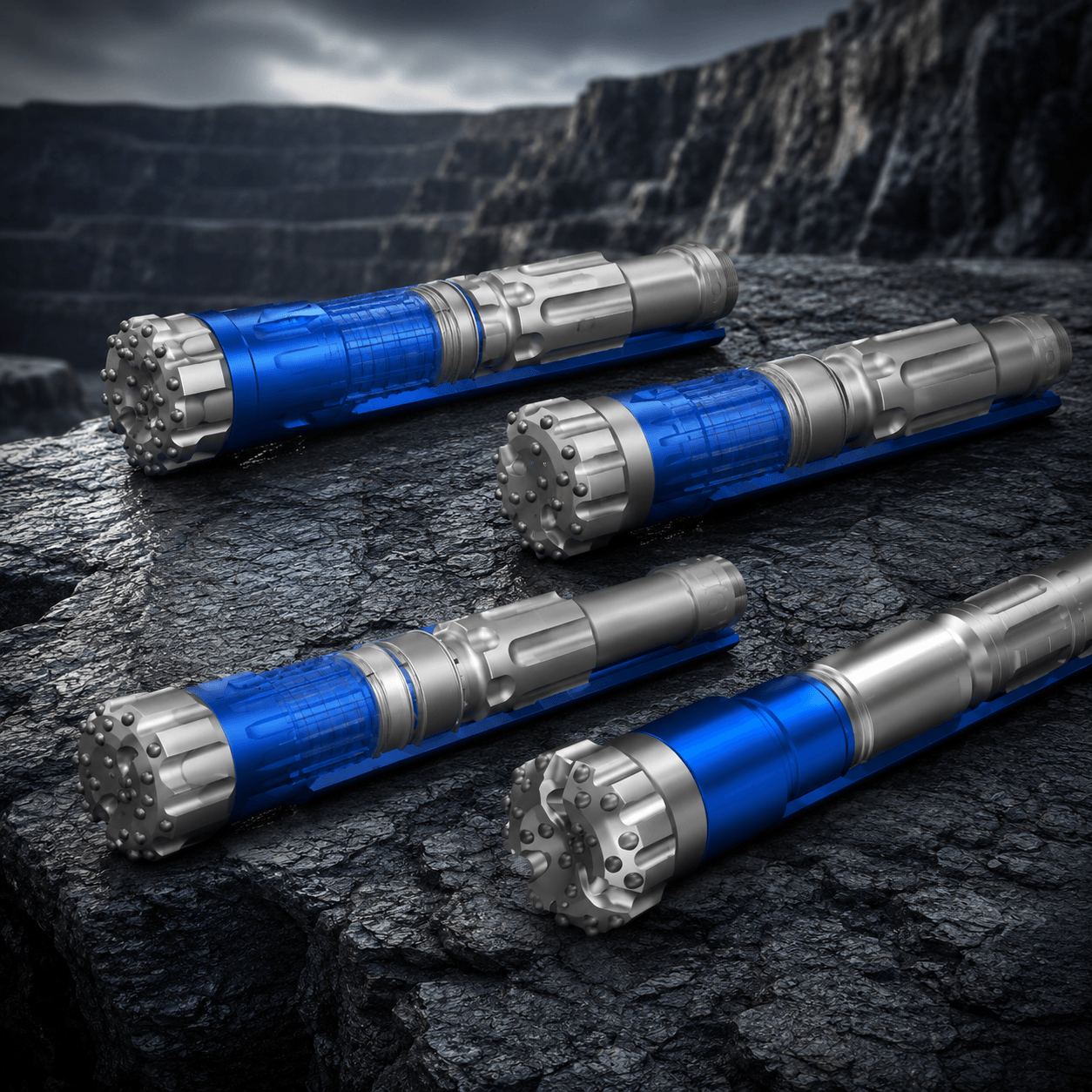

Engineered for large-diameter, high-output drilling programs. Four models share a robust 8-inch platform — HADK-A800I, A800S, A800Q, and the blow-tube-free HADK-T800UCQ — all with a 4½" API REG PIN connection, 7.16" OD, and a common 7.87"–10.63" bit range.
Drill King International’s 8-inch DTH hammer series is engineered for large-diameter, high-output drilling programs in Mining, Quarrying, Water Well, and Construction applications. Four models share a robust 8-inch platform — all featuring a 4½” API REG PIN connection, 7.16″ OD, and a common bit size range of 7.87″–10.63″ — while offering distinct shank compatibility and air distribution designs: HADK-A800I (IR380), HADK-A800S (SD8), HADK-A800Q (QL80), and HADK-T800UCQ (QL80 blow-tube-free). This range lets operators standardize on one large-diameter platform while selecting the exact shank standard and design specification their equipment and project conditions require.
Constructed from premium alloys with precision heat treatment, the 8-inch series delivers high impact energy across a 150–350 PSI working range. A shared 7,000 lb·Ft make-up torque rating and 1,750 lb·Ft rotation torque across all A800 models reflect the heavy-duty demands of large-diameter production drilling. Drill King’s Repair & Rebuild kits support all four models, keeping downtime to a minimum on the most demanding production sites worldwide.
Easy, cost-effective field maintenance across all four 8-inch models.
Fastest penetration rates in large-diameter 8-inch class drilling programs — up to 1,425 blows/min.
IR380, SD8, and QL80 shank standards supported, covering the most widely used 8-inch bit inventories worldwide.
All models configurable for open hole and cased hole project requirements.
All wear-critical components treated for extended field service intervals in high-energy drilling environments.
7,000 lb·Ft / 9,492 N·m make-up torque and rotation torque up to 1,750–1,753 lb·Ft across all models — engineered for large-diameter production drilling.
Eliminates internal blow tube components, reducing wear points and improving operational reliability for Mining, Water Well, and Construction.
All models rated for the same 7.87"–10.63" / 200–270 mm bit range, simplifying bit procurement and fleet management.
High rotation torque (1,750 lb·Ft), 7,000 lb·Ft make-up torque, and bit compatibility up to 10.63" — built for sustained output in large-scale production mining and quarry blast-hole operations.
Broad 150–350 PSI working range and proven air distribution suit deep municipal, industrial, and agricultural water well construction in varied geological conditions.
High-frequency impact up to 1,425 blows/min and a common 200–270 mm bit range enable consistent, high-productivity drilling in quarry face development.
Configurable open and cased hole setups support large-diameter piling, anchoring, and site investigation where borehole integrity and diameter control are critical.
| Parameter | HADK-A800I | HADK-A800S | HADK-A800Q | HADK-T800UCQ |
|---|---|---|---|---|
| Shank Type | IR | SD | QL | QL |
| Top Sub Connection | 4½" API REG PIN | 4½" API REG PIN | 4½" API REG PIN | 4½" API REG PIN |
| Effective Length | 51.62" / 1,311 mm | 50.37" / 1,279 mm | 50.87" / 1,292 mm | 48.60" / 1,235 mm |
| Outer Diameter (OD) | 7.16" / 182 mm | 7.16" / 182 mm | 7.16" / 182 mm | 7.16" / 182 mm |
| Hammer Weight | 405 lbs / 184 kg | 405 lbs / 184 kg | 405 lbs / 184 kg | 391 lbs / 178 kg |
| Piston Weight | 84 lbs / 38.10 kg | 84 lbs / 38.10 kg | 84 lbs / 38 kg | 95 lbs / 43 kg |
| Application Bit Range | 7.87" – 10.63" / 200 – 270 mm | 7.87" – 10.63" / 200 – 270 mm | 7.87" – 10.63" / 200 – 270 mm | 7.87" – 10.63" / 200 – 270 mm |
| Working Pressure | 150–350 PSI / 10.30–24.10 Bar | 150–350 PSI / 10.30–24.10 Bar | 150–350 PSI / 10.30–24.10 Bar | 150–350 PSI / 10.30–24.10 Bar |
| Rotation Speed | 10–30 RPM | 10–30 RPM | 10–30 RPM | 20–30 RPM |
| Frequency | 1,425 BPM | 1,310 BPM | 1,425 BPM | 1,030 BPM |
| Pressure (PSI) | Pressure (Bar) | CFM | M³/Min |
|---|---|---|---|
| 150 | 10.30 | 496 | 14.08 |
| 250 | 17.20 | 820 | 23.20 |
| 350 | 24.10 | 1,264 | 35.76 |
| Pressure (PSI) | Pressure (Bar) | CFM | M³/Min |
|---|---|---|---|
| 150 | 10.30 | 496 | 14.08 |
| 250 | 17.20 | 820 | 23.20 |
| 350 | 24.10 | 1,264 | 35.76 |
| Pressure (PSI) | Pressure (Bar) | CFM | M³/Min |
|---|---|---|---|
| 150 | 10.30 | 496 | 14.08 |
| 250 | 17.20 | 820 | 23.20 |
| 350 | 24.10 | 1,264 | 35.76 |
| Pressure (PSI) | Pressure (Bar) | CFM | M³/Min |
|---|---|---|---|
| 150 | 10.30 | 620 | 17.50 |
| 250 | 17.20 | 1,025 | 29 |
| 350 | 24.10 | 1,580 | 45 |
Not sure which model fits your rig and bit inventory? Our technical team can advise on shank compatibility, compressor requirements, and parts availability for your operating region.
